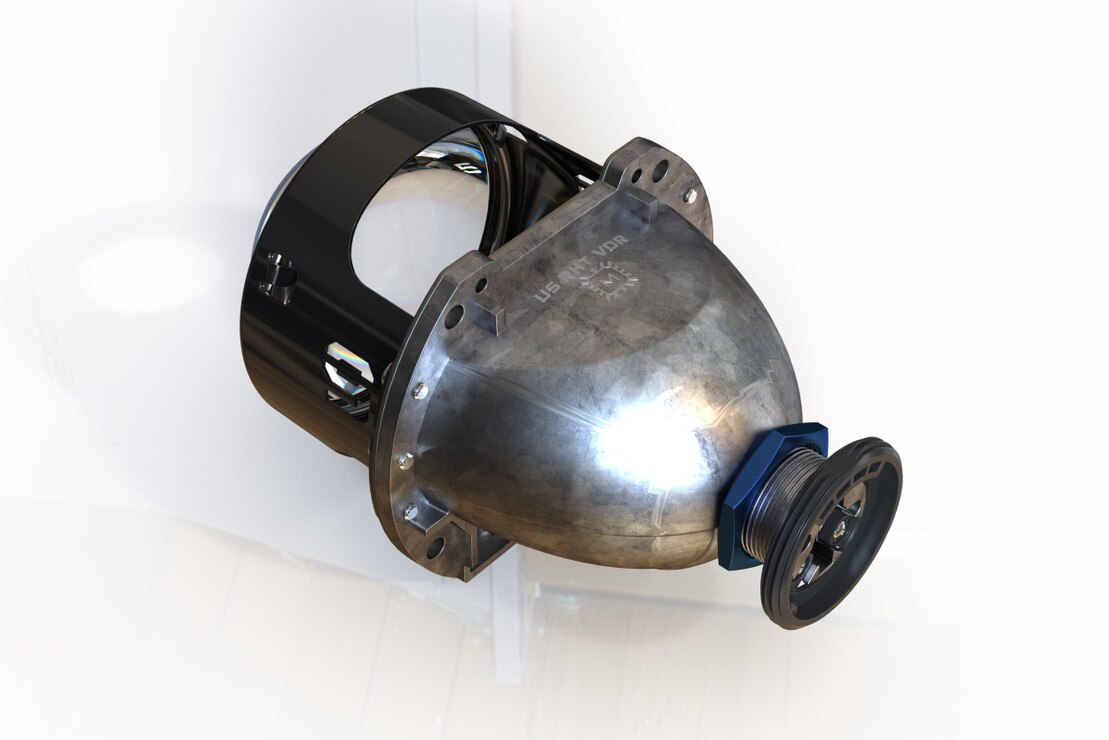

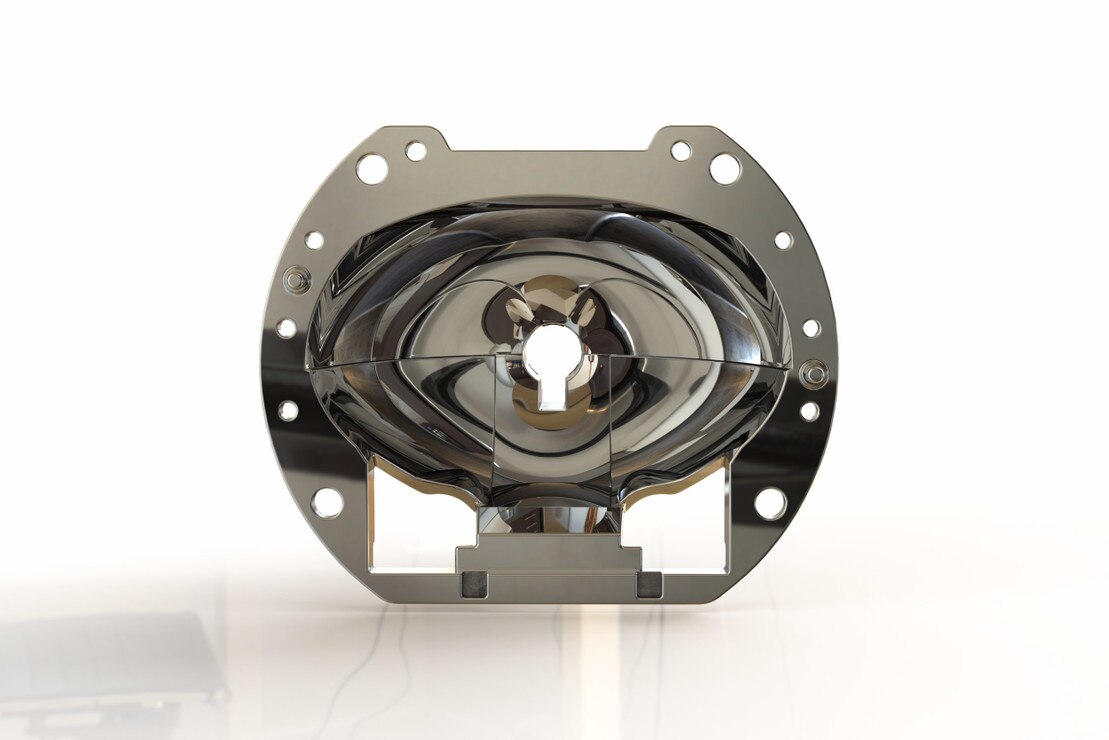

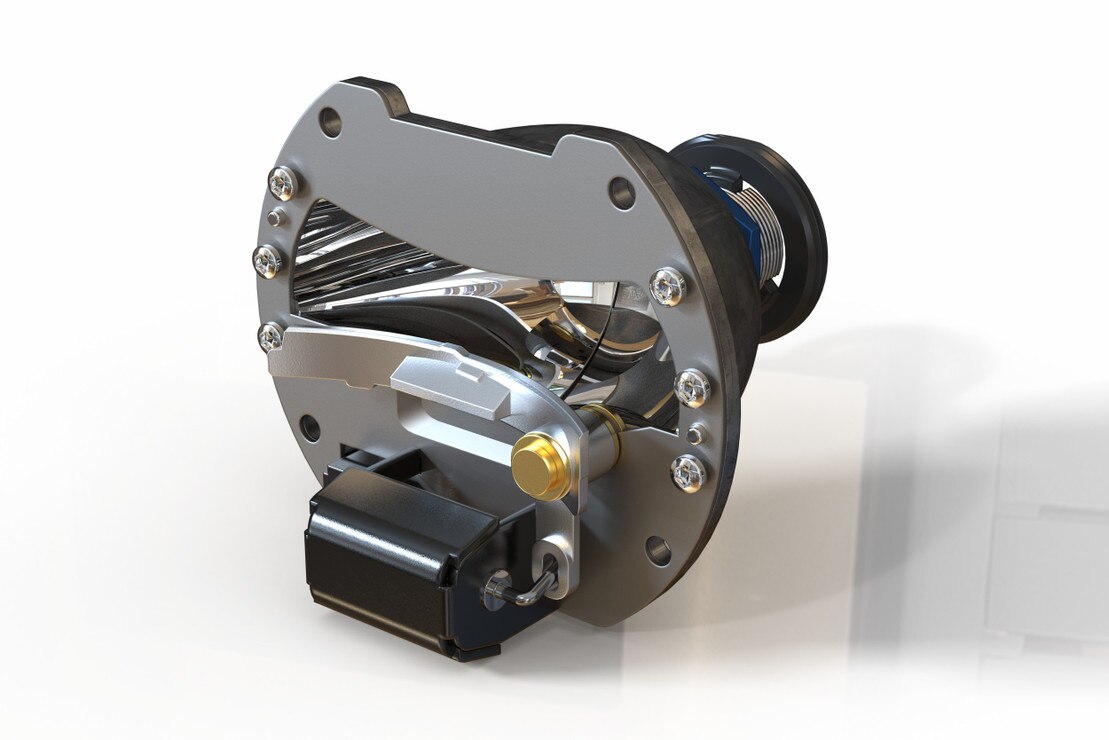

Bi-xenon: Morimoto Mini H1 8.0

1 Review
Questions?

Brand: Morimoto

B-PRJ-MH1-MM

$165.00

PRODUCT OPTIONS

PART #: 2 x PR011



DESCRIPTION

The Morimoto Mini H1 8.0 builds upon its predecessors by incorporating several years of refinements. Known for setting the benchmark in the H1 category, Morimoto enhances this iteration with advanced optics, superior components, and ease of installation. These projectors offer unmatched performance, making them a top choice for those seeking optimal illumination on the road.

FEATURES & BENEFITS

  • Advantage: Features a new blue AR clear lens, ECE sloped beam pattern, standard MotoHo1der precision bulb holders, and a robust blue anodized lock ring.
  • Quad Perfection: Compact design with slope style cutoff, allowing for quad retrofit with matching beam patterns.
  • Easy Install: Simplified installation process with minimal cutting, making it the most popular Morimoto bi-xenon projector.
  • Stand Out Performance: Advanced optics and AR clear lens compete with top OEM HID projectors, delivering a wide and uniformly lit beam.
  • Anti-Reflective Coating Lens: Blue-tinted lens with AR coating to enhance light transmission and reduce glare, increasing light output by 10%.

WHAT’S INCLUDED

  • Projectors: 2x (One Pair) Mini H1 8.0 Bi-Xenon Projectors

  • Hardware: 2x 9006 Solenoid Input Pigtails, Bulb Holders, Mounting Hardware

WARRANTY INFORMATION

This Morimoto product includes a 3 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

TECHNICAL SPECIFICATIONS

  • Power: 35w HID Systems Only

  • Traffic Pattern: LHD or RHD

  • Lens Diameter: 2.5in

  • Mounting Shaft: 20mm Diameter

  • Housing Depth: 115mm Minimum

  • Lens Type: AR Coated 'Kuria Optic' Glass

LINE DRAWINGS

COMPATIBILITY

  • APPLICATIONS: Universal (cars/trucks/motorcycles)

  • DIRECT FITMENT: H4, H7 fog lights (little/no mods required)

  • MODIFICATIONS REQUIRED: H1, H11, H13, 9005, 9006, 9007 housings

  • HID BALLASTS: 35W Only

  • BULB TYPE: H1 HID Only

  • SHROUDS: All Styles (w/ Centric Rings)

  • CENTRIC RINGS: Shrouds Require Mini H1 Model

COMPLIANCE

APPLICATION: HID and LED projectors are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.

HOMOLOGATION ECE: NO

DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)

INSTALLATION DOCUMENTS

Eight is Great: Morimoto invented the Mini and has always set the benchmark high when it came to the H1... But no matter how many imitations popped up over the years, the competition just couldn't compare. In fact, no alternative ever even caught up to the 7.0. It's not that the 8.0 represents an entirely new generation of Mini H1, but Morimoto definitely took a good thing and made it even better by baking in a few more years of refinement.


Advantage: Let's keep it simple and make a list of everything new about the Mini H1 8.0. The new blue AR clear lens. The ECE sloped beam pattern. The MotoHo1der precision bulb holders are now standard equipment, and the blue anodized lock ring is stronger and more strip-free than ever. The distribution of light as good as ever. Your ability to see is maximized.


Quad Perfection:If you've been dying to do a quad projector retrofit but don't have the space inside your lights for something bigger, there's never been a better time. Now that the compact Mini H1 projector uses a slope style cutoff to match it's bigger brothers like the D2S 5.0 or MLED 2.0, you can do a quad retrofit with perfectly matching beam patterns all the way across. Oh yeah!


Easy Install: The Mini H1 8.0's amazing ease of installation relative to the amount of performance they produce makes them our most popular Morimoto bi-xenon projectors. Simply remove fog light lens, insert the threaded mounting shaft through the pre-existing hole in the back of the reflector, hand-tighten, check rotation, tighten, and re-seal fog lights. Minimal cutting involved. (if any!) Check out the Installation Procedure for the Mini H1 8.0 linked above.


Stand Out Performance: With the most modern optics, the new AR clear lens, and their curved cutoff shield; The Mini H1 8.0 will outshine almost every OEM HID projector on the market and go head to head with the legendary S2000 projectors! (which cost 3x as much, are much harder to retrofit, and don't even have a high beam) Their wide, uniformly lit beam stays intense all the way to the outer limits. The Morimoto bi-xenon projectors' provide an insane amount of additional light on demand.


Standard Equipped: With your choice of either Mini Gatling Gun or Mini Graphite shrouds to keep things compact and easy to assemble. Full size shrouds are also compatible with the Mini's using the centric rings.


MOTOHO1DERS: Are the high-precision H1 bulb holders that Morimoto released in 2018, and they now come standard. It utilizes a three-piece design that's way more effective but virtually no bigger overall than the old paperclip setup. The clever three-piece design provides even pressure on the back of the bulb, ensuring perfect alignment. To be honest, we think it's the single best upgrade to Morimoto's bi-xenon projectors that's ever been conceived since it helps make the most of the awesome Mini H1 8.0's on the road. Well worth the extra few bucks in the grand scheme of things!


Anti-Reflective Coating Lens: The blue tint to the lens is more than marketing fluff too. That's an AR coating, and it serves a real purpose. AR coatings increase the transmission of light through the glass all while decreasing bleed. The result? 10% more light and less glare compared to a traditional clear lens. The blue-hue may not be for everybody, but in this case we're down.
