DESCRIPTION
FEATURES & BENEFITS
- Hybrid LED Technology: Affordable blend of LED & Incandescent bulbs.
- Quality Construction: OEM-grade housing, DRL optics, and 5-year warranty.
- Powerful Performance: LED low beam and high beam projectors for enhanced visibility.
- DOT Approved: Meets SAE, DOT, and FMVSS108 regulations for safety.
- Easy Installation: Plug-and-play design with no errors or flickering.
WHAT’S INCLUDED

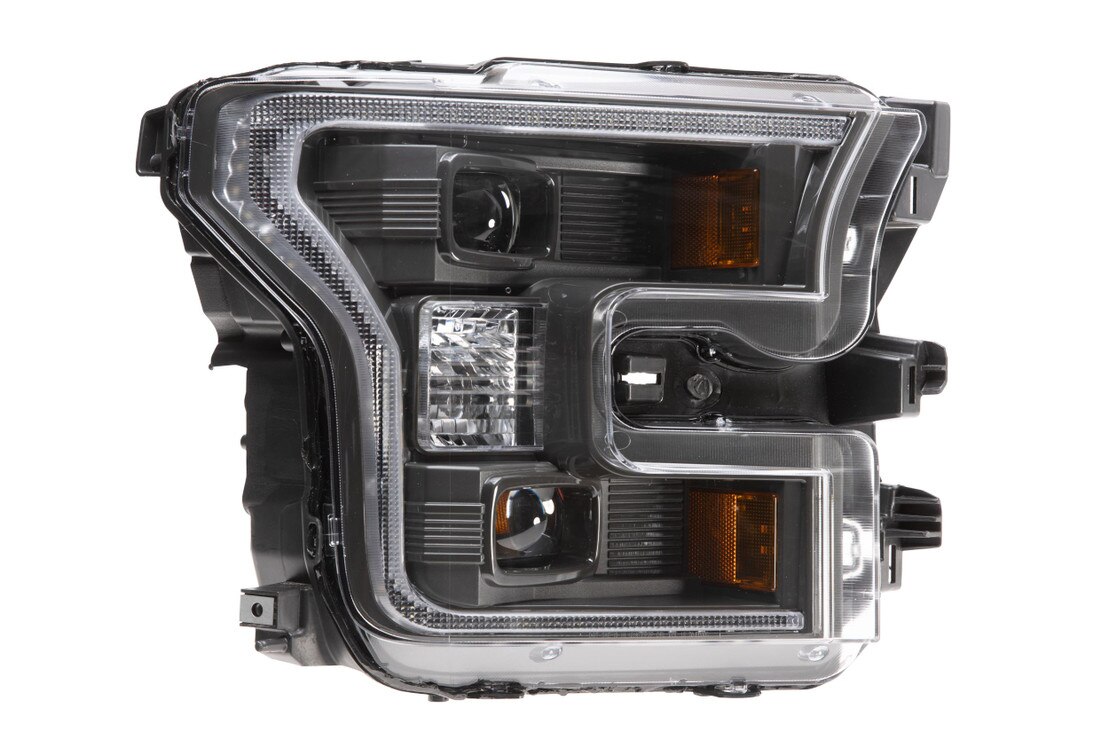

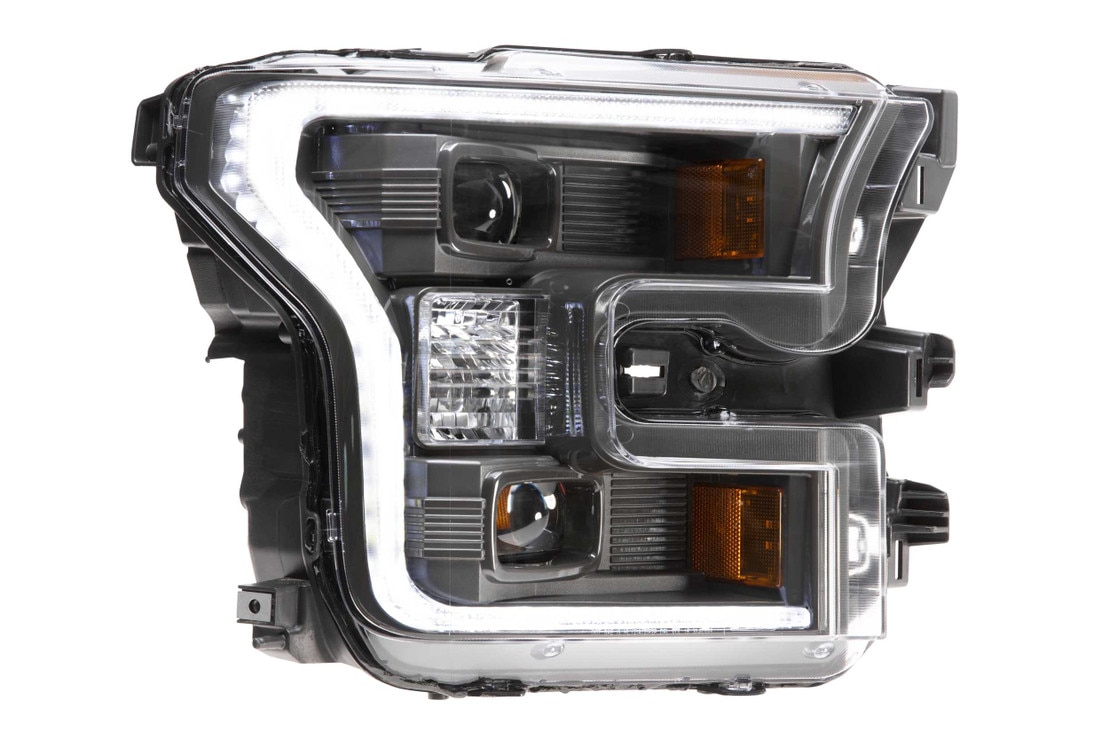

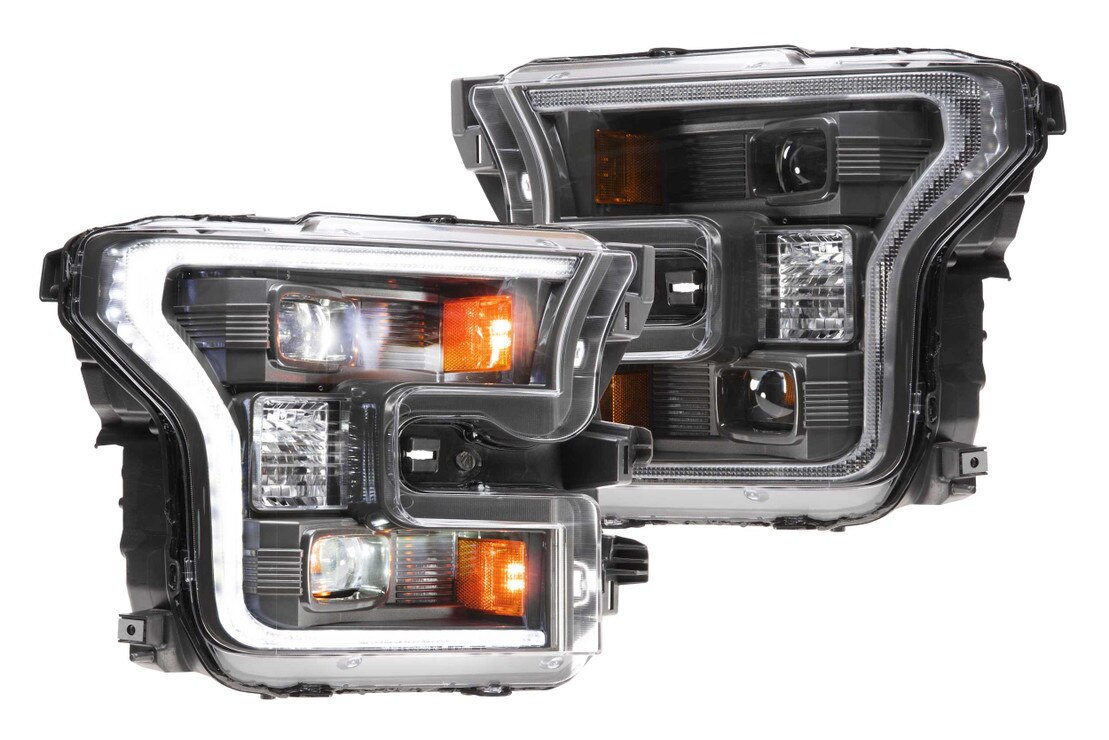

Headlights: 2x (One Pair) 15-17 F-150 XB Hybrid LED Headlights
Wiring: Plug and Play Harness, Fuse Tap
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Traffic Pattern: LHD Only
Input: Ford Multi-Pin OEM
Functions: DRL (White), Turn, Parking, Low, High
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic: Kuria Optic LED
UV Coating: Momentive UVHC3000
LINE DRAWINGS
COMPATIBILITY
Ford F-150: :2015-2017 w/o OEM LEDs*
*NOTE: If your F-150 has OEM 3157/4157 front turn signal bulbs, you will need to buy a set of 7443's (not included)
Replaces Ford Part #: FL3Z13008B, FL3Z13008A, GL3Z13008B, GL3Z13008A, FO2502344, FO2503344, FO2502335, FO2503335
NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
COMPLIANCE
INSTALLATION DOCUMENTS
BANG FOR THE BUCK: When they came out in late 2018, The XB LED headlights from Morimoto set the bar higher than everything else in the aftermarket, and they're still the benchmark by a longshot to this day. But for many enthusiasts looking for the best, the XB's were simply too expensive. With the introduction of the new Hybrid version, there is finally an XB that everybody can afford. Using a combination of both LED & Incandescent bulbs (thus, Hybrid) these offer much of the same amazing features that the originals do for those who want to be XB-ballers on a budget.
QUALITY, INSIDE AND OUT: Thanks to sharing many of the same core components developed for the top of the line model, the new Hybrid series headlights from Morimoto are hardly a compromise. They use the same OEM-grade housing. The same optics for the DRL. They offer the same five-year warranty too. The fit and finish on the Morimoto Ford F150 LED headlights is far superior than anything else out there in this price range, guaranteed.
PERFORMANCE: We've always been blown away by the fact that the other brands don't even consider how well their headlights perform on the road at night. The XB Hybrid headlights have a powerful, wide, and bright LED low beam projector, and a dedicated LED high beam projector too. Their optics were specially developed just for use the hybrid lineup to produce an amazing beam pattern despite the affordable price point. These are much more than an aesthetic upgrade, they will illuminate the road much more effectively too.

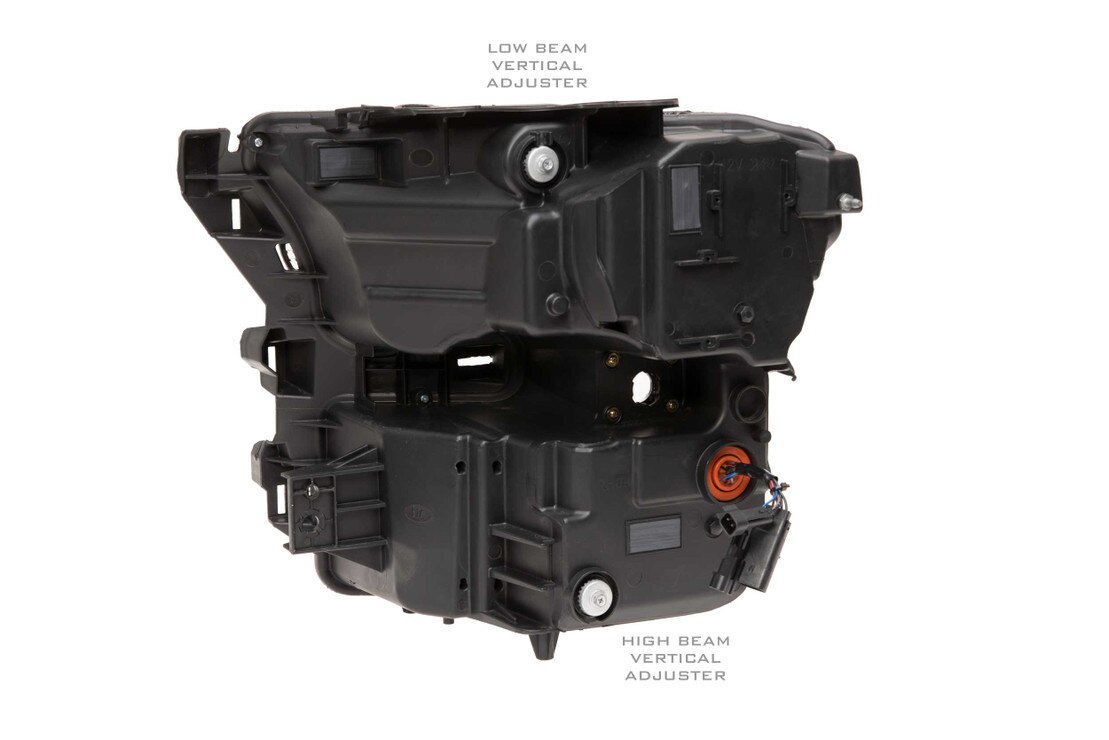

DOT APPROVED: Make no mistake, these will produce a much different [better] result than slapping some LED replacement bulbs into your stock housings. Their Dual LED projector optics meet & exceed all SAE, DOT, and FMVSS108 regulations when aimed properly...and that's easy to do with their integrated adjusters.
PLUG-N-PLAY: Wiring is easy too! Morimoto's Hybrid XB F150 LED headlights are designed to work on your truck without any modifications. They will plug into the factory connectors for the stock headlights and each assembly includes all necessary connectors, rubber seals, and pigtails for a plug n play install. No error codes, no flickering, hyper-flashing, or radio interference. They can easily be removed, and will not void your factory warranty. (Note, these will not work on trucks with OEM LED headlights)

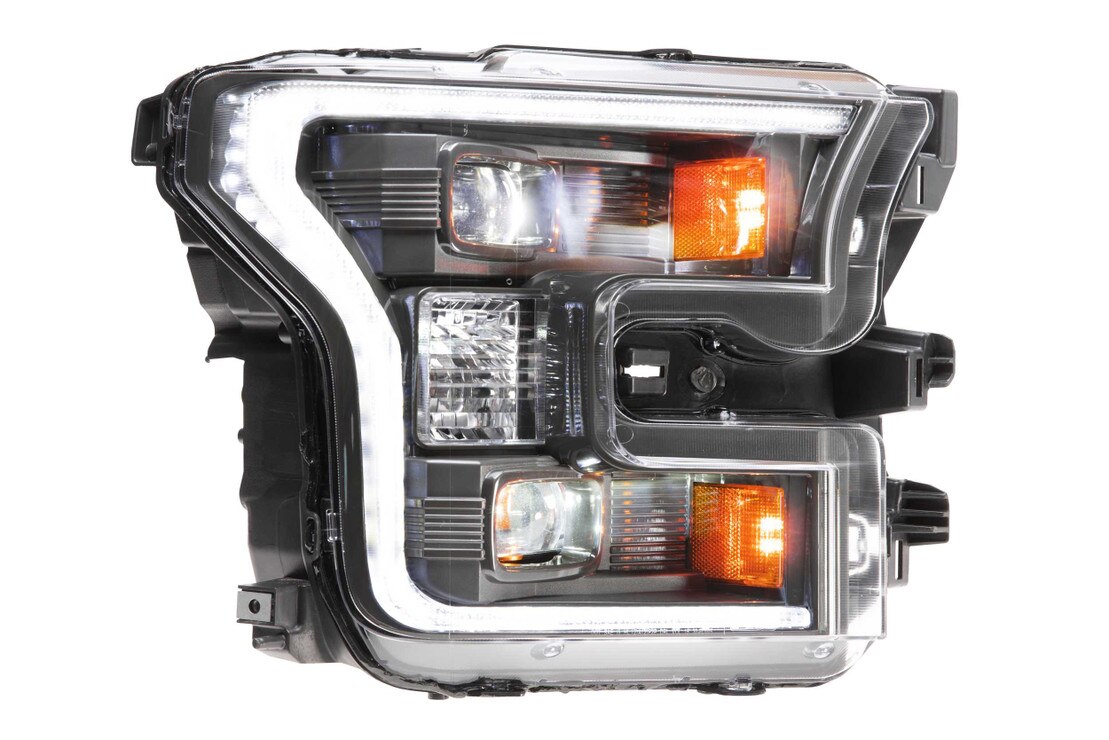

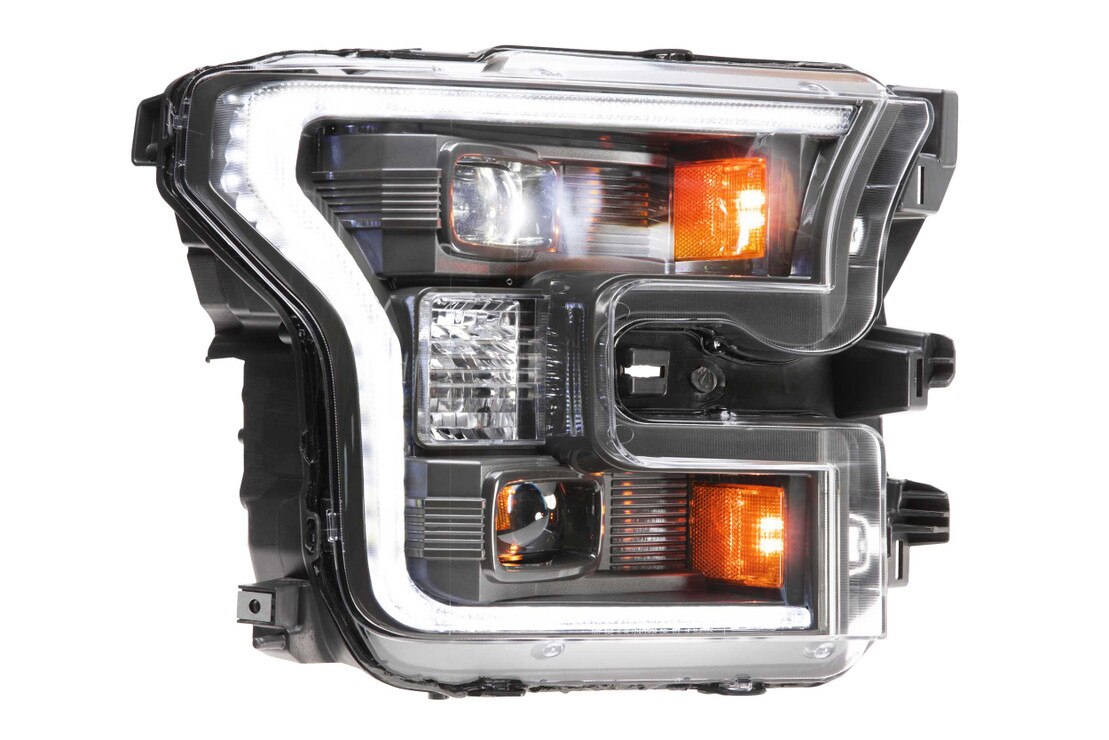

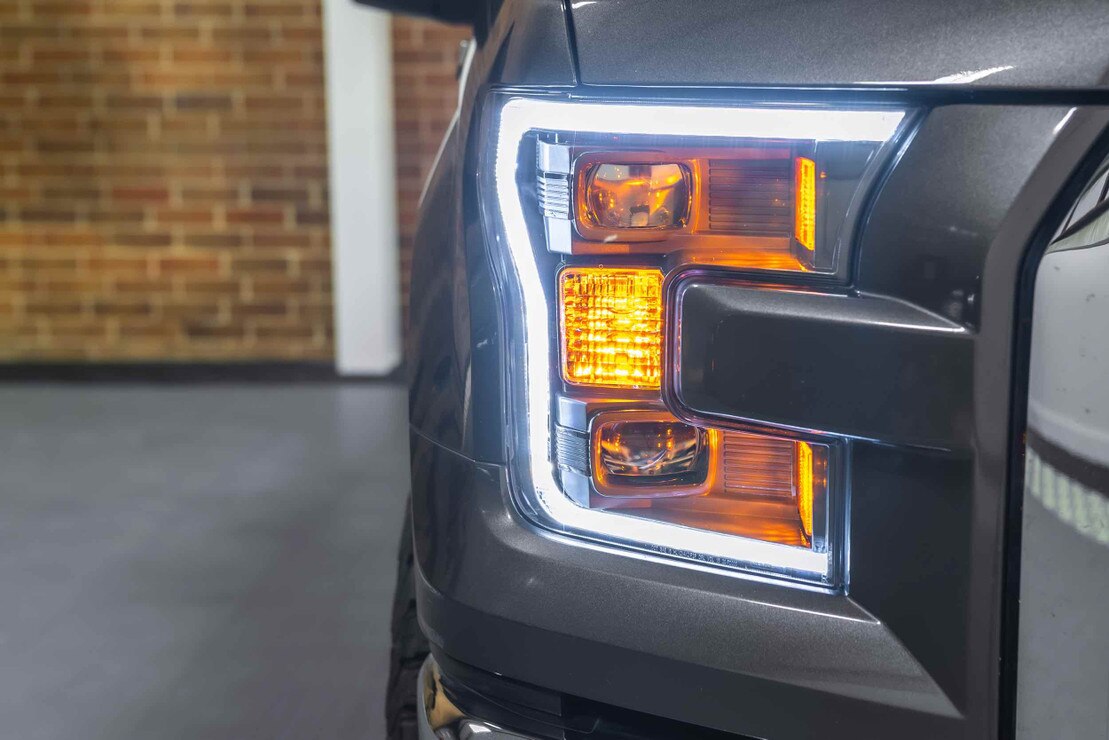

LED DAYTIME RUNNING LIGHT: Game Changer! Their LED daytime running light is powered by Osram 5000K LEDs and is insanely bright, easily visible during the day. The DRL will automatically dim down with the parking lights and low beams for full compliance. The components here are identical to what's in the big-boy version of the XB's and one of the best and most distinguishing features compared to cheaper alternatives out there.
WELL-BUILT: If you're going to invest in your truck, do it right the first time. The XB hybrid headlights are built with UV-coated polycarbonate lenses that will resist the test of time, ensuring your truck's new headlights will look good as new for many years to come. The PPS plastic housing is light-weight and much stronger than comparable alternatives. Morimoto's XB LED headlights have proven to hold up quite well after being on the market for quite some time now, which is very confidence inspiring when most cheap headlights start to yellow within six months of installation.
